Product family

designline

Name: designline
Brand: akustikplus

Slatted panels on an acoustic PET carrier

Slatted acoustic panels combining MDF slats with a PET fibre acoustic carrier made from 60 percent recycled content, fixed with simple screw mounting.

Finishes

Surfaces that carry the room

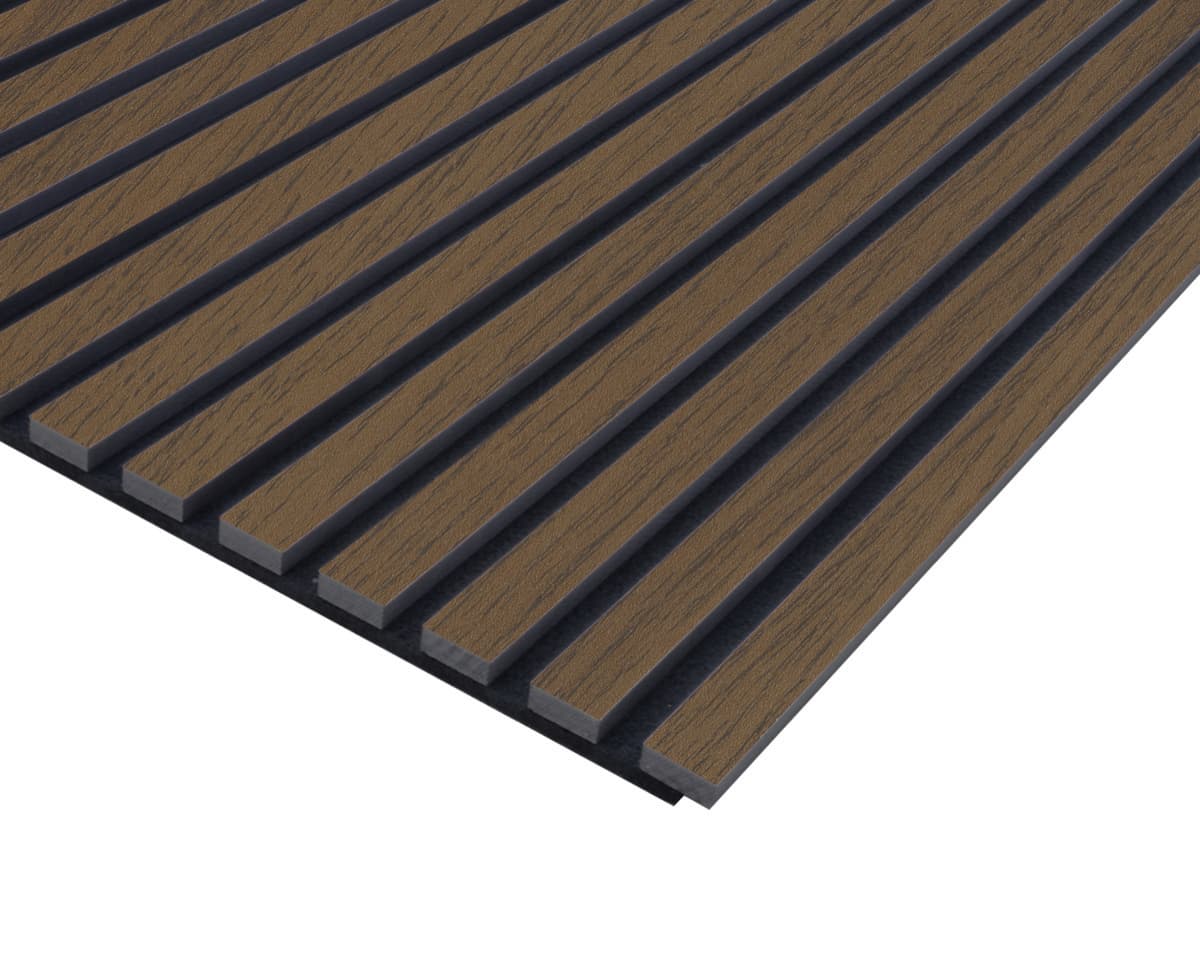

Dark oak veneered finish on designline acoustic panel — Dark oak veneered
Art. 413910

Mountain oak foil finish on designline acoustic panel — Mountain oak foil
Art. 413911

Oak veneered finish on designline acoustic panel — Oak veneered
Art. 413908

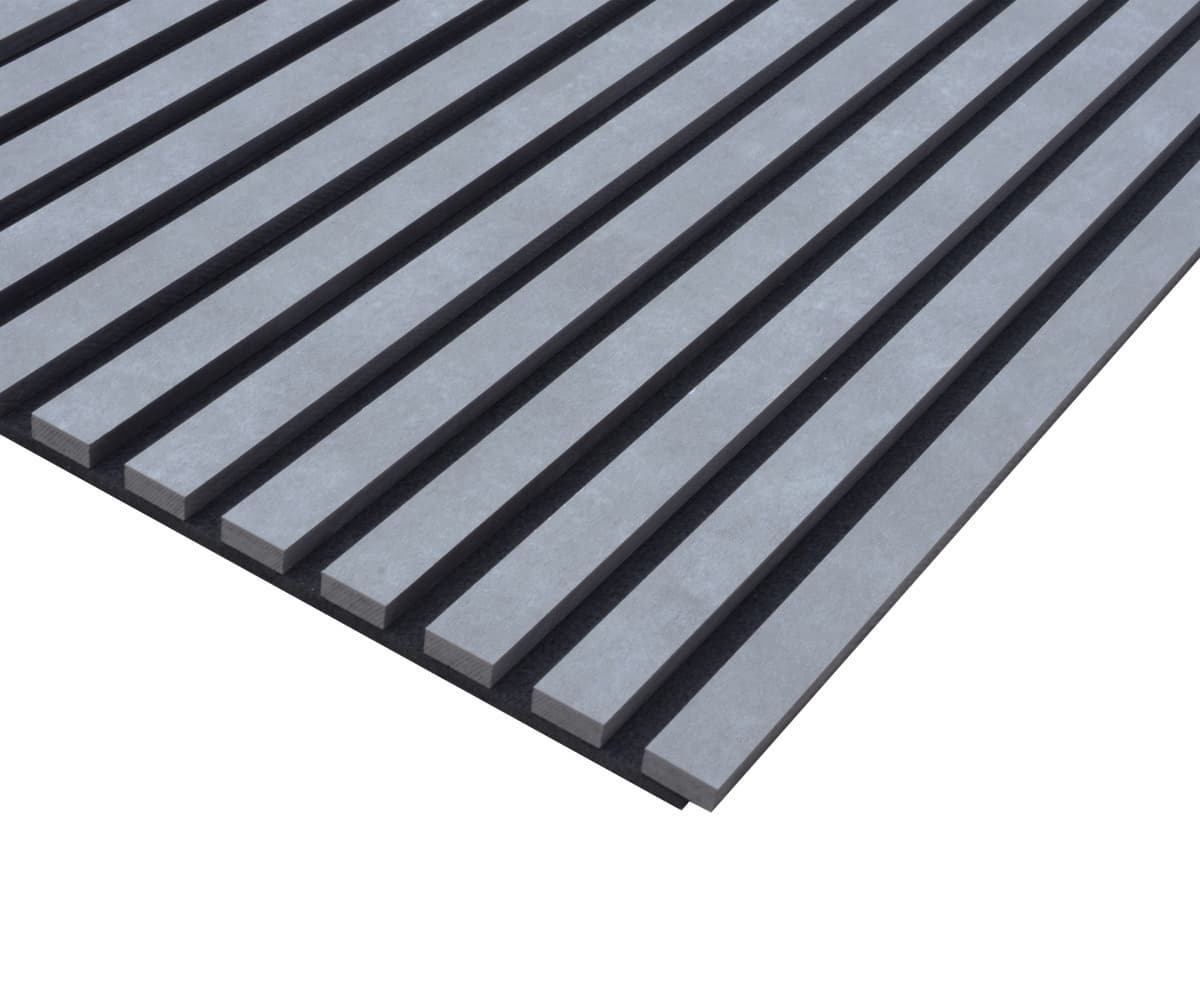

Concrete grey foil finish on designline acoustic panel — Concrete grey foil
Art. 413913

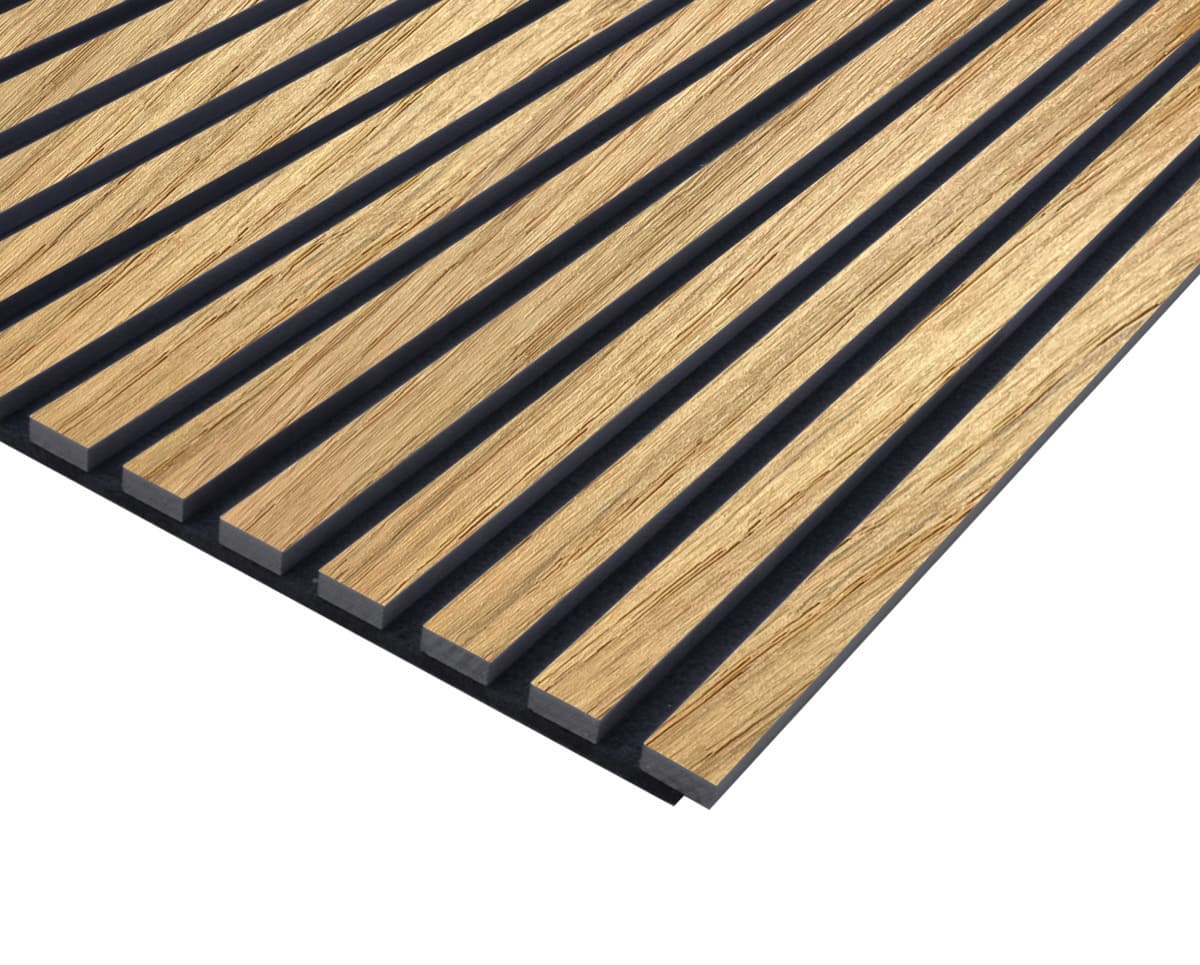

Light oak veneered finish on designline acoustic panel — Light oak veneered
Art. 413909

Oak puro foil finish on designline acoustic panel — Oak puro foil
Art. 413912

Variants and technical data

Grab your board and find a wave

designline 40/15

Slatted acoustic panel for walls: MDF slats on a PET fibre acoustic carrier, fixed with simple screw mounting.

Dimensions: 2,400 x 572.5 mm (+2 mm / -1 mm), 1.37 m2 per panel, 12 mm thick
Core board: PET fibre carrier (9 mm, black), 60% recycled content, PVC-free; MDF slats 25 x 8 mm
Area density: approx. 3.4 kg/m2
Surfaces: Veneer, decorative foil
Fire classification: Normal flammability, D-s2, d2 according to DIN EN 13501-1
Formaldehyde: E1 (DIN EN 16516)
Mounting: Simple screw fixing, vertical or horizontal, wall

Download data sheet (PDF)

Measured absorption

Mounting condition	αw	Class	NRC
19 mm overall build-up, direct mount	0.2	E	0.25
100 mm overall build-up, 88 mm cavity	0.55	D	0.55

19 mm overall build-up, direct mount100 mm overall build-up, 88 mm cavity

Documents

Plan with real data

CAD .dwg files and technical drawings are available on request. Contact us

Ready to specify designline?

Tell us your area in square metres and we will come back with a tailored quotation, usually within one working day.

Get a Quote
