Product family

slimline

Name: slimline
Brand: akustikplus

Slotted acoustic panels, versatile in design and intuitive to install

High-quality slotted acoustic panels for modern interiors, in patterns from 16/3 to invisible and Stripes, with a proprietary tongue and groove system.

Finishes

Surfaces that carry the room

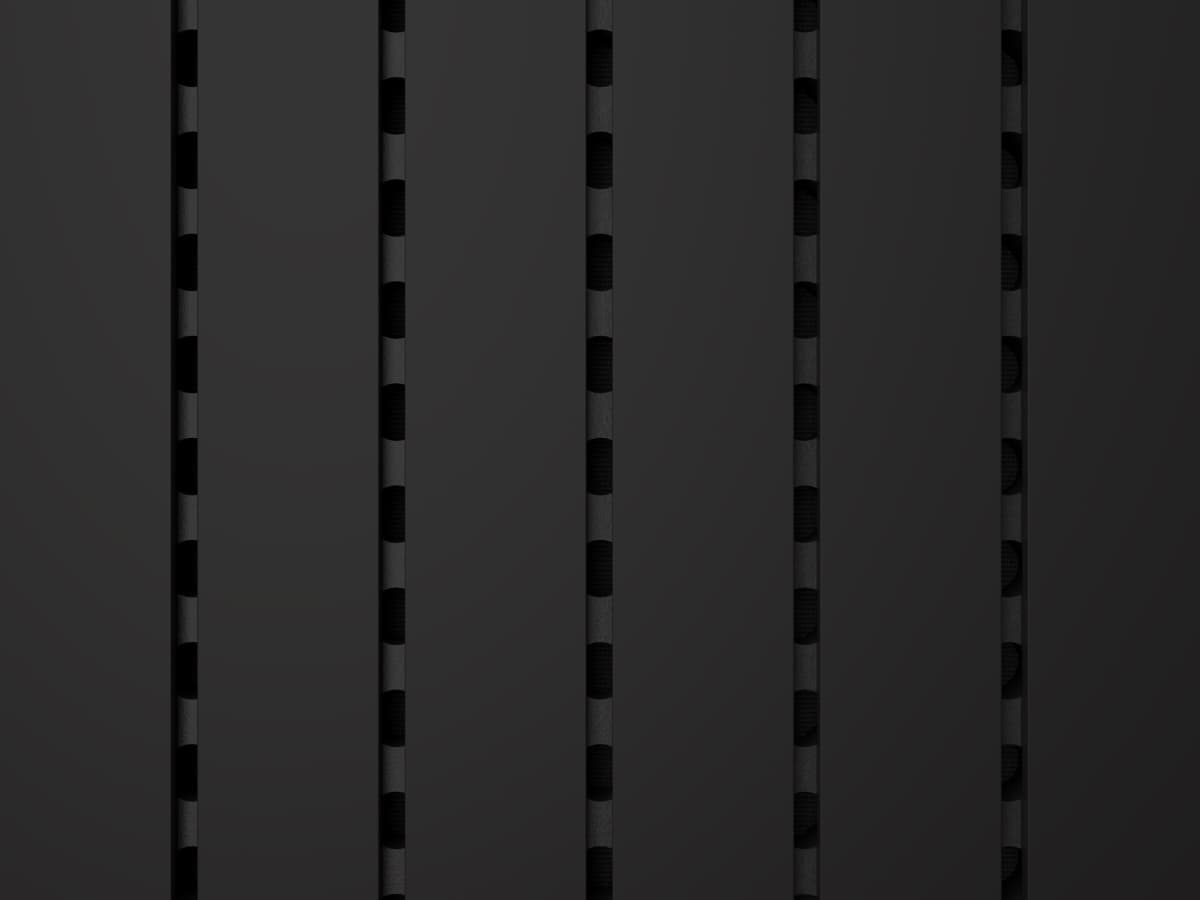

Soft touch black finish on slimline acoustic panel — Soft touch black
Art. 548177

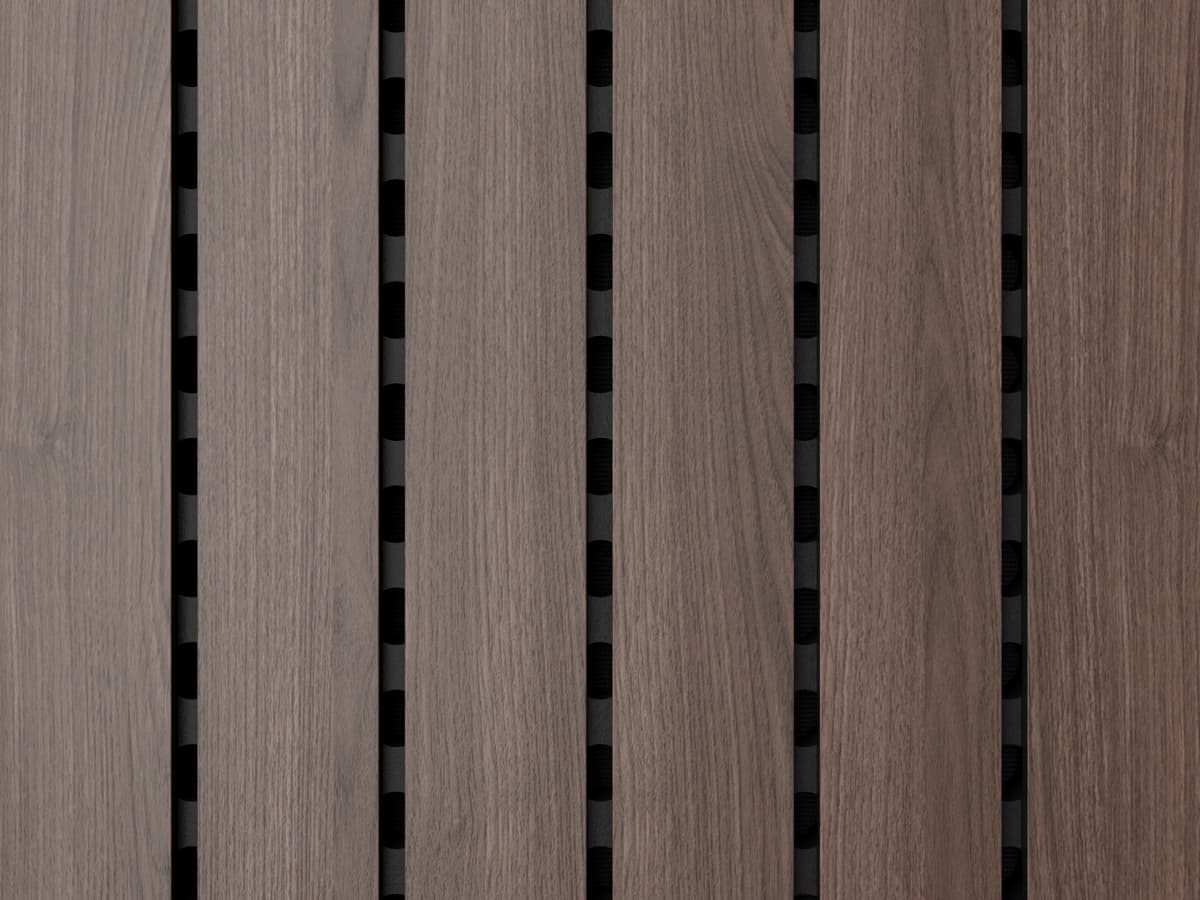

Walnut finish on slimline acoustic panel — Walnut
Art. 548175

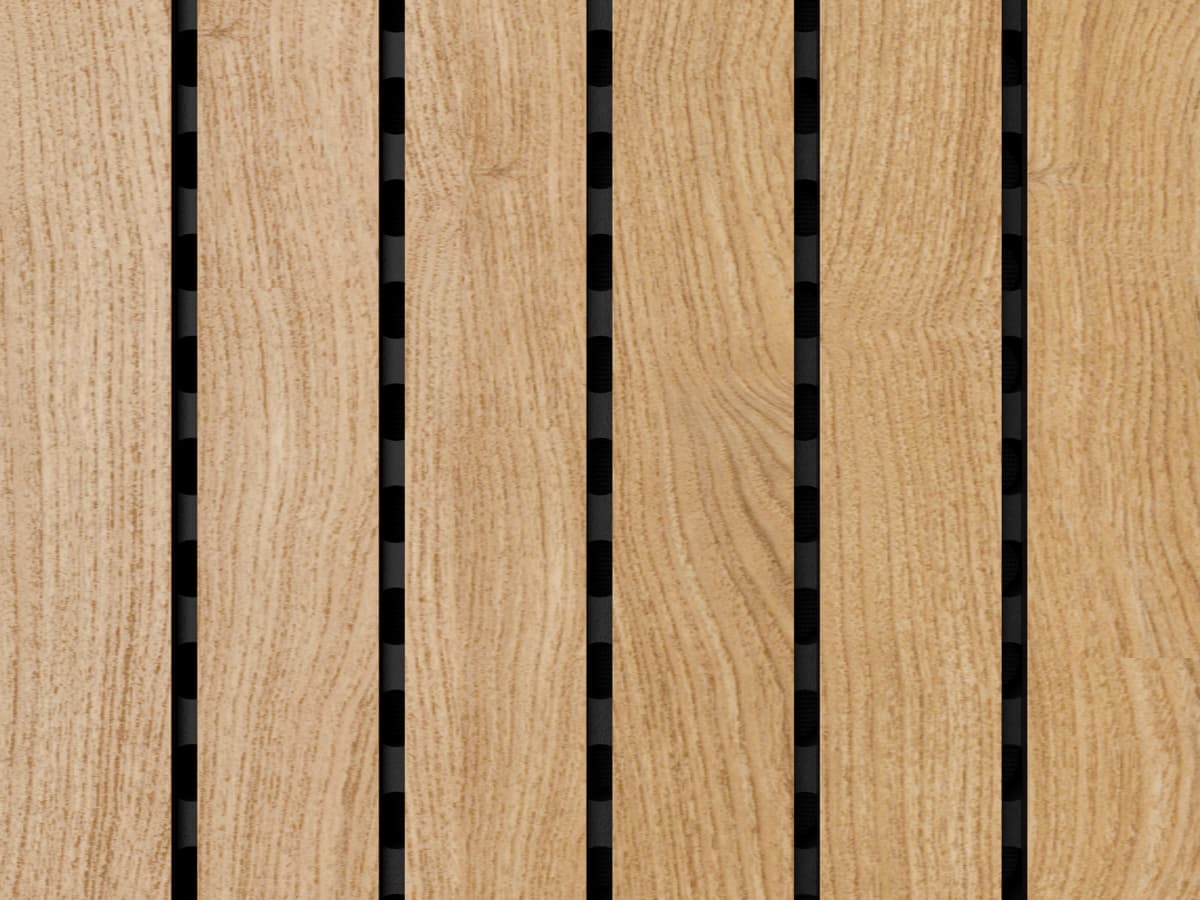

European oak finish on slimline acoustic panel — European oak
Art. 548176

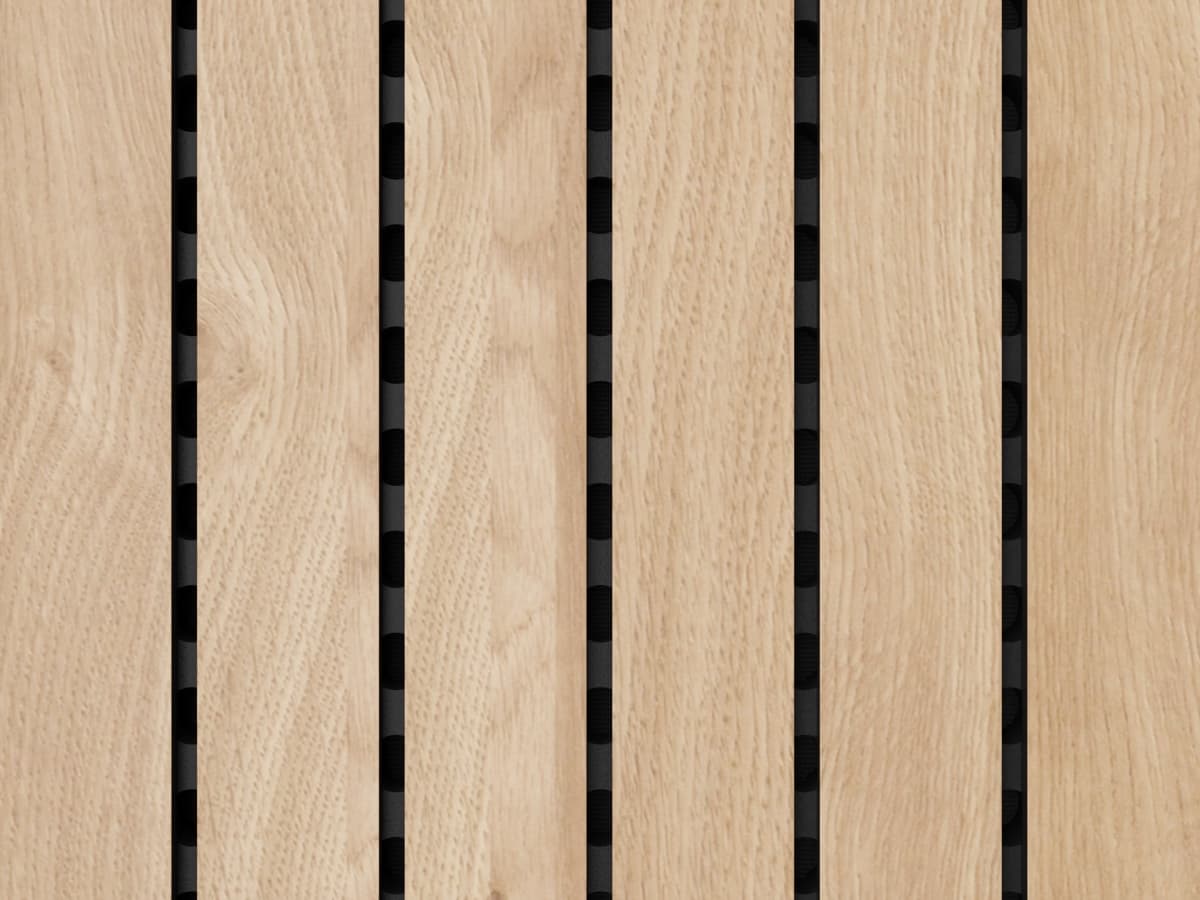

Coastal oak finish on slimline acoustic panel — Coastal oak
Art. 548173

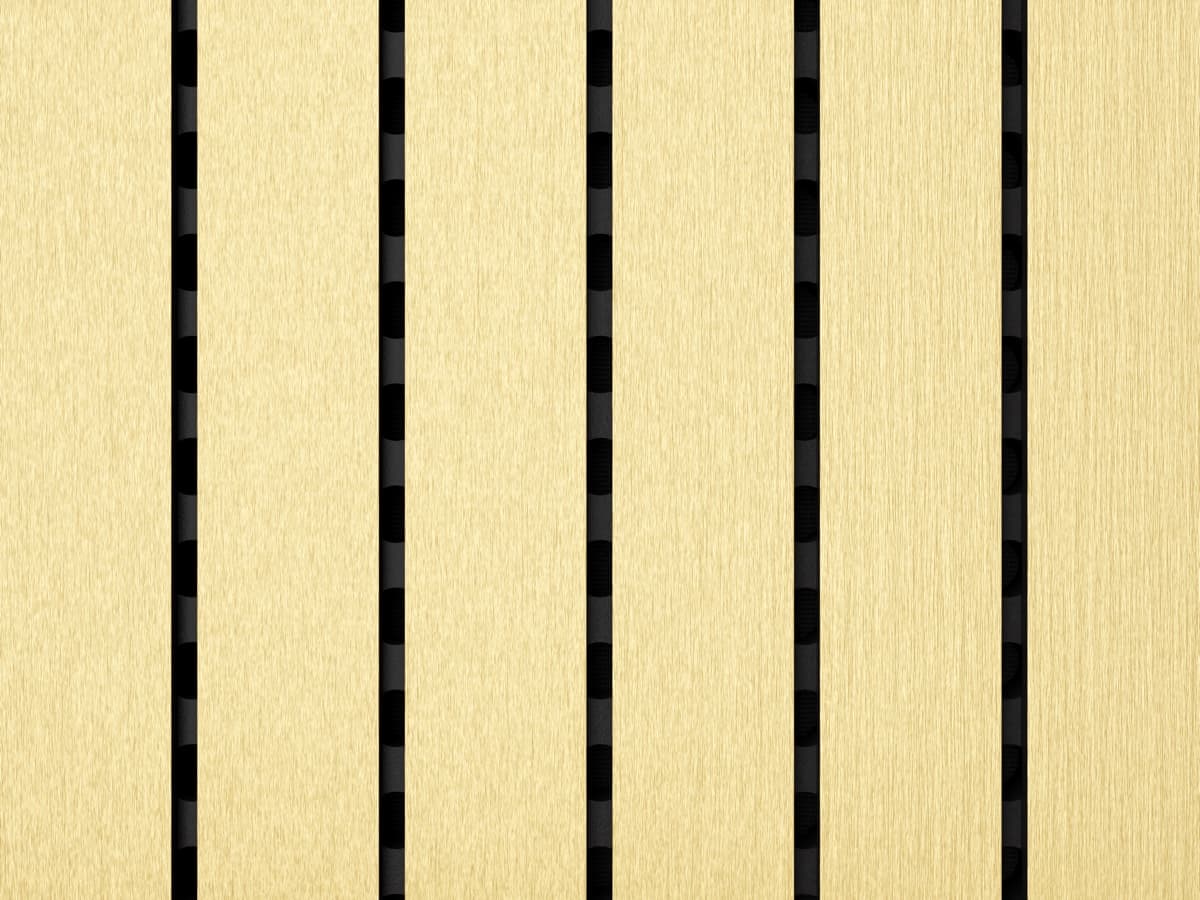

Bronze finish on slimline acoustic panel — Bronze
Art. 548178

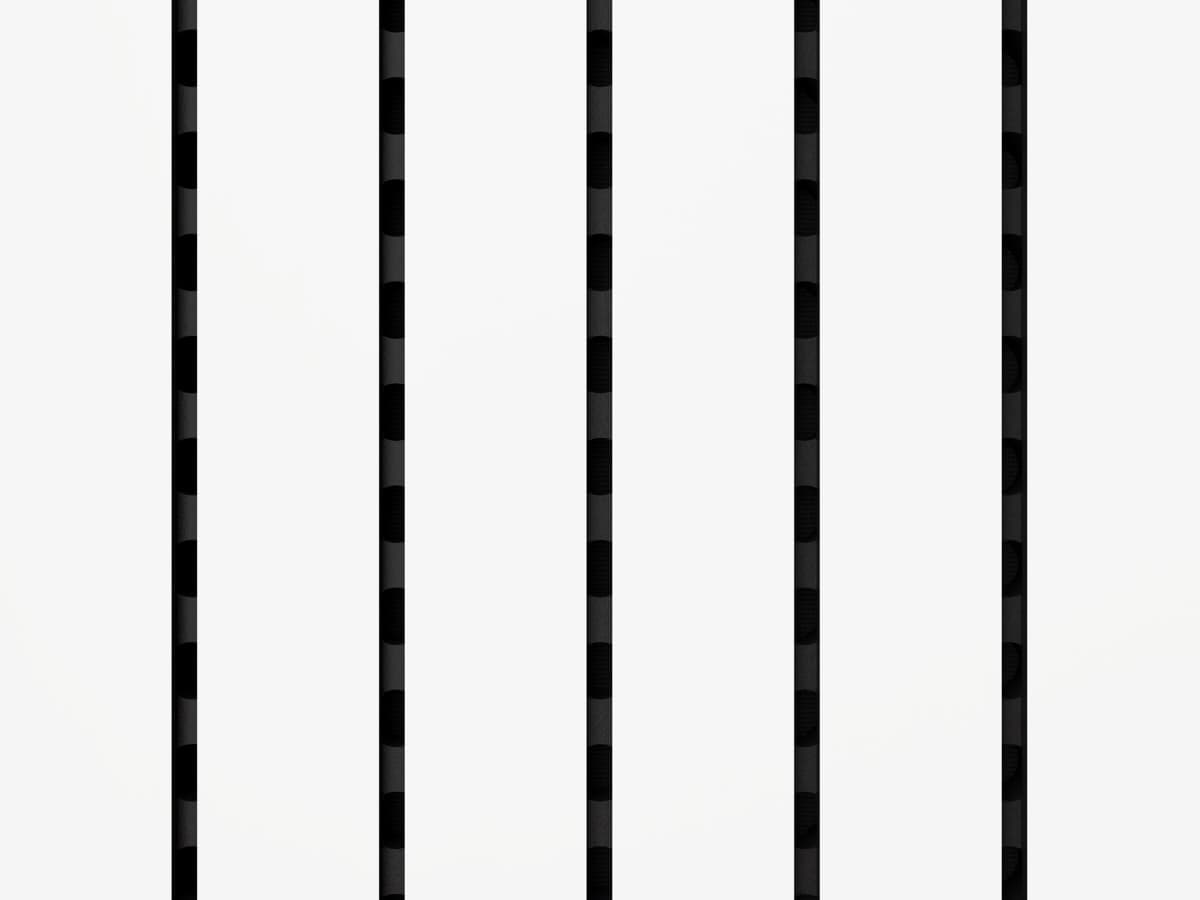

Premium white finish on slimline acoustic panel — Premium white
Art. 548174

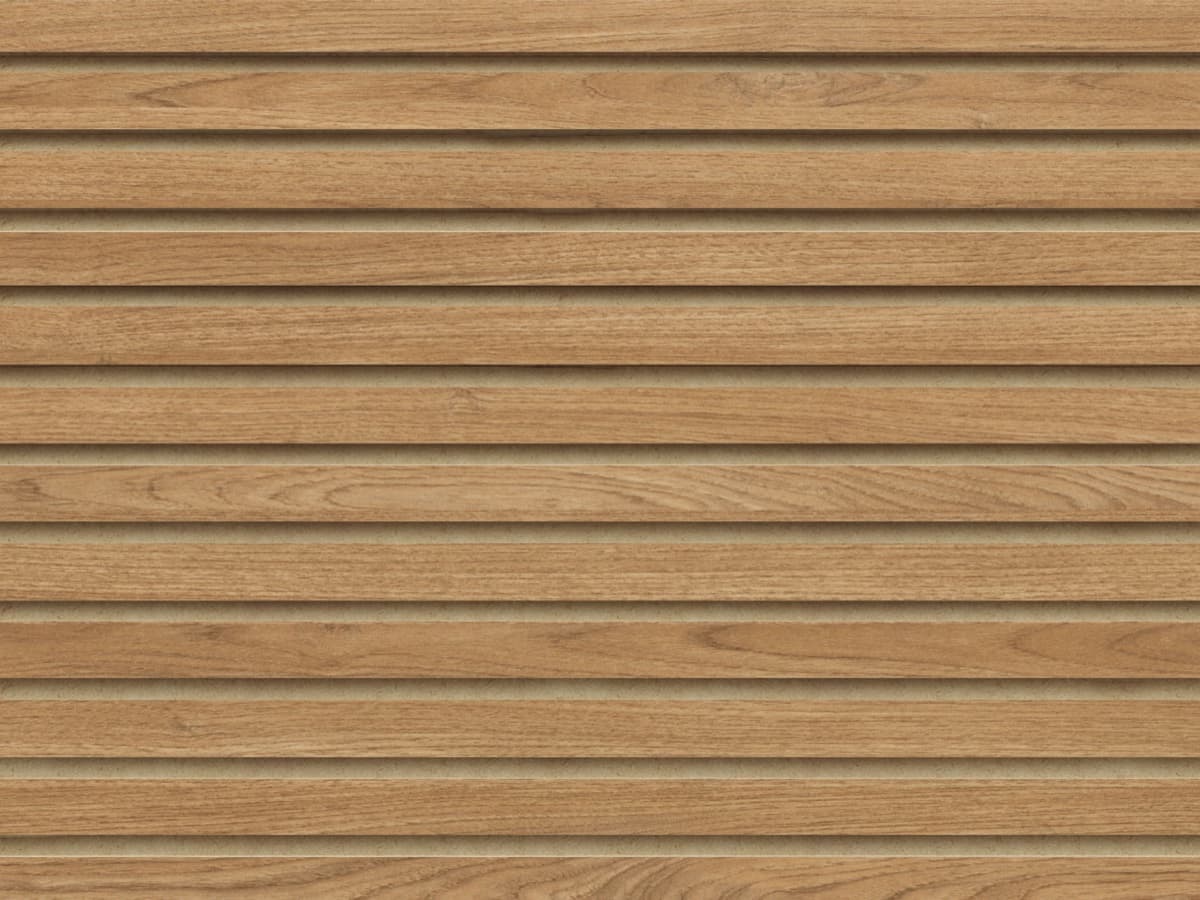

Invisible European oak veneer finish on slimline acoustic panel — Invisible European oak veneer
Art. 548188

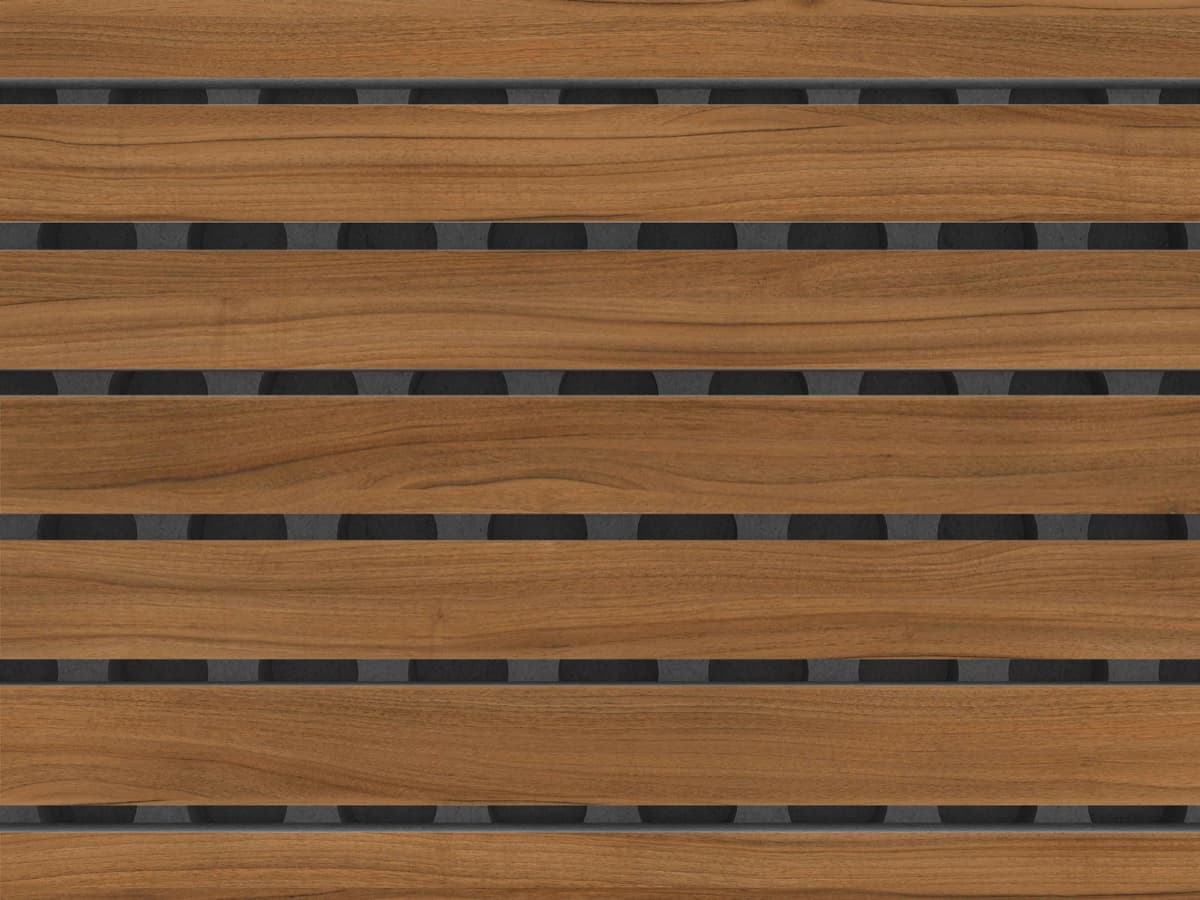

Dijon walnut on black core 16/3 finish on slimline acoustic panel — Dijon walnut on black core 16/3
Art. 548193

Stripes[3] European oak on black core finish on slimline acoustic panel — Stripes[3] European oak on black core
Art. 548187

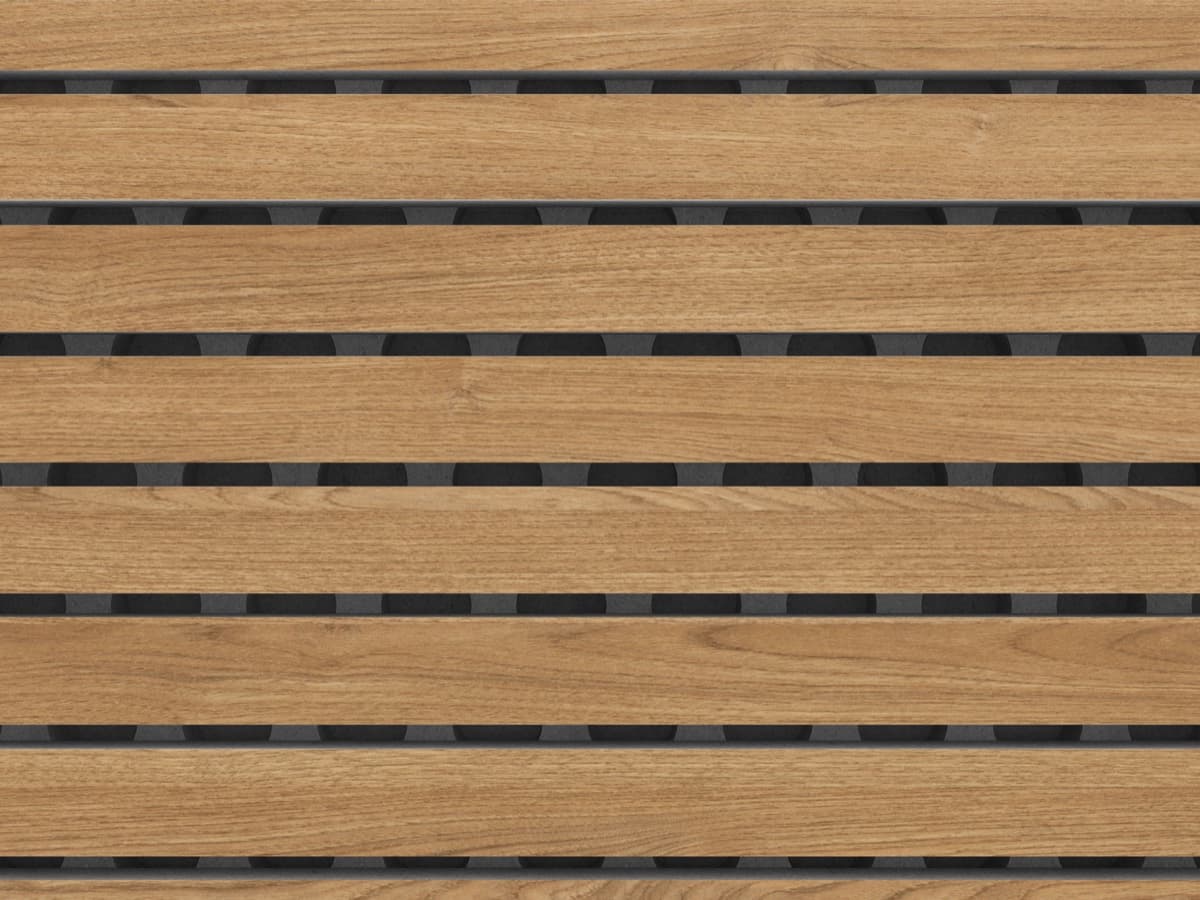

European oak veneer on black core 16/3 finish on slimline acoustic panel — European oak veneer on black core 16/3
Art. 548192

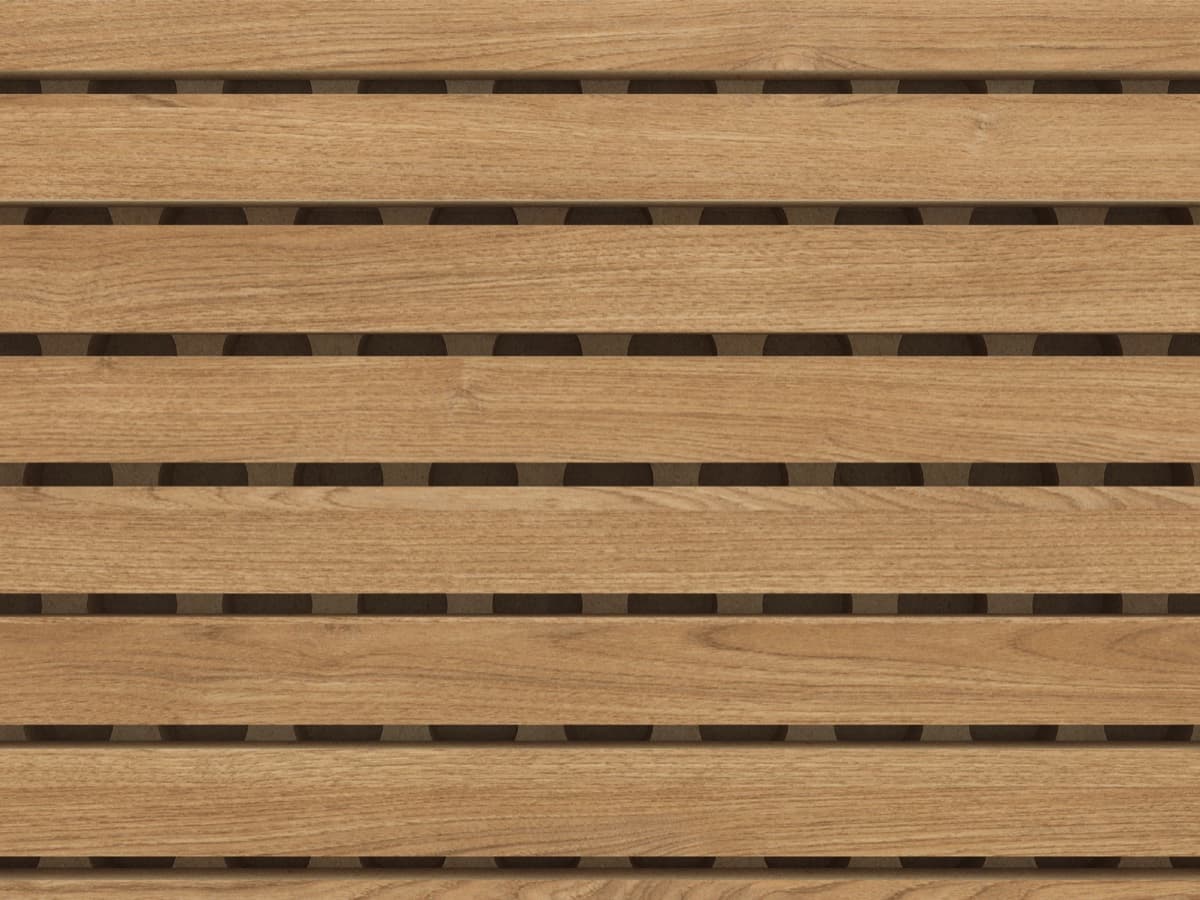

European oak veneer 16/3 finish on slimline acoustic panel — European oak veneer 16/3
Art. 548182

Stripes[3] European oak veneer finish on slimline acoustic panel — Stripes[3] European oak veneer
Art. 548185

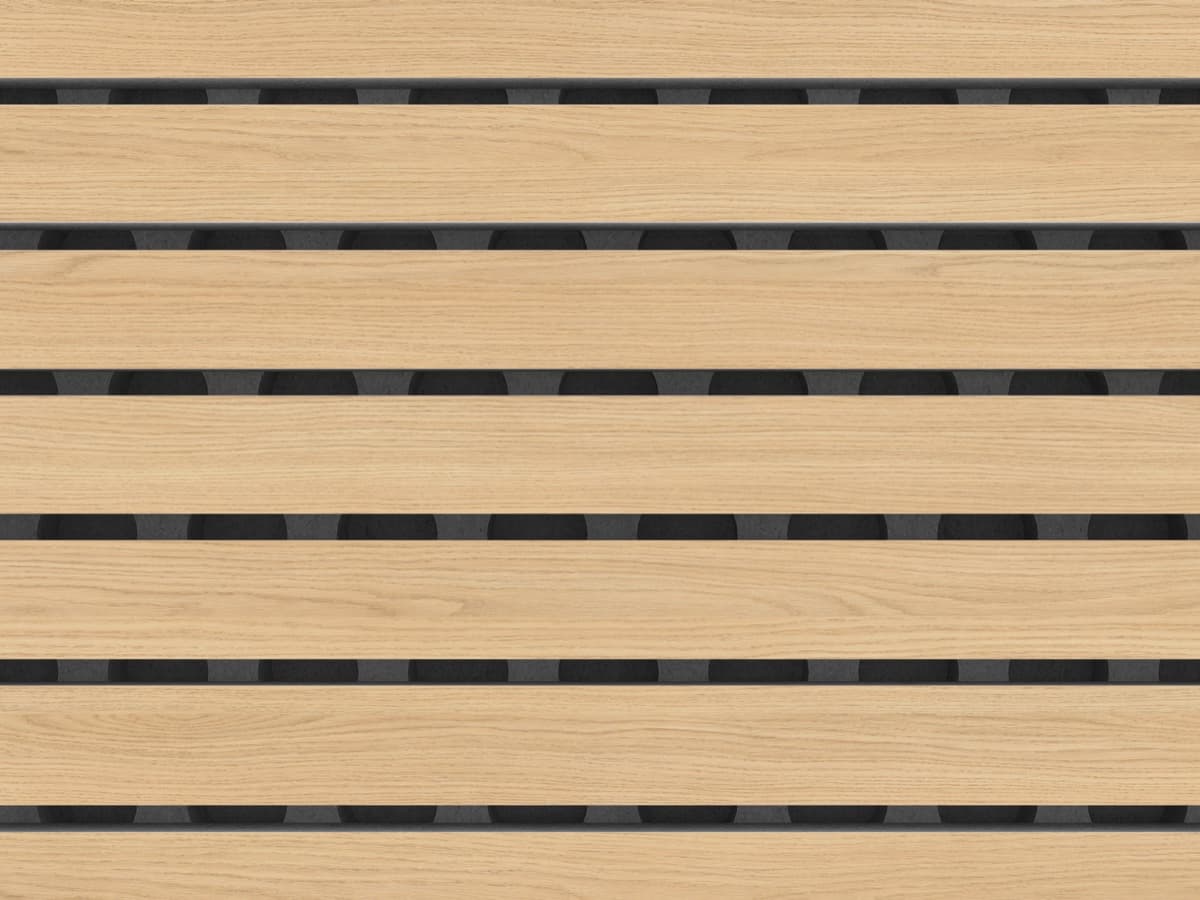

Vicenza oak on black core 16/3 finish on slimline acoustic panel — Vicenza oak on black core 16/3
Art. 548191

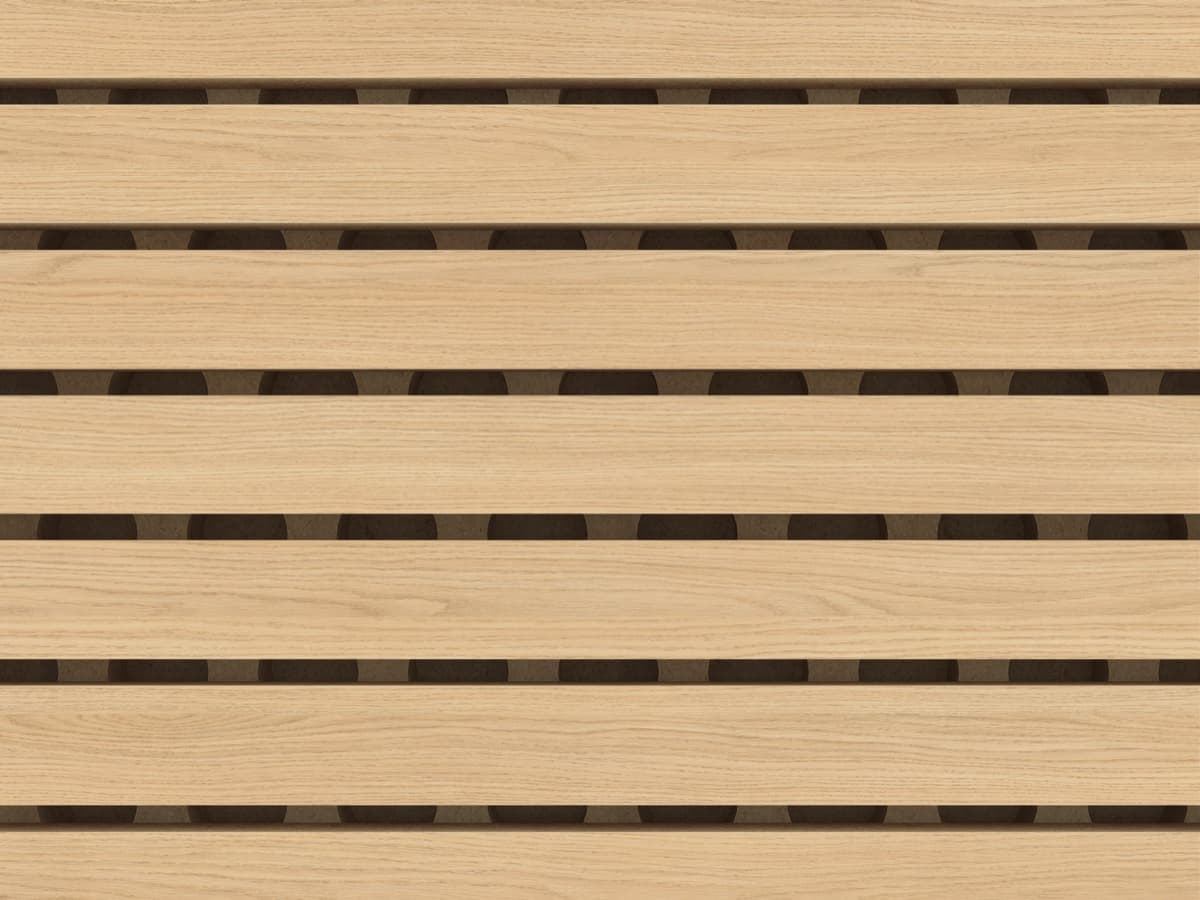

Vicenza oak on brown core 16/3 finish on slimline acoustic panel — Vicenza oak on brown core 16/3
Art. 548189

Premium white 16/3 finish on slimline acoustic panel — Premium white 16/3
Art. 548179

Stripes[3] premium white on black core finish on slimline acoustic panel — Stripes[3] premium white on black core
Art. 548186

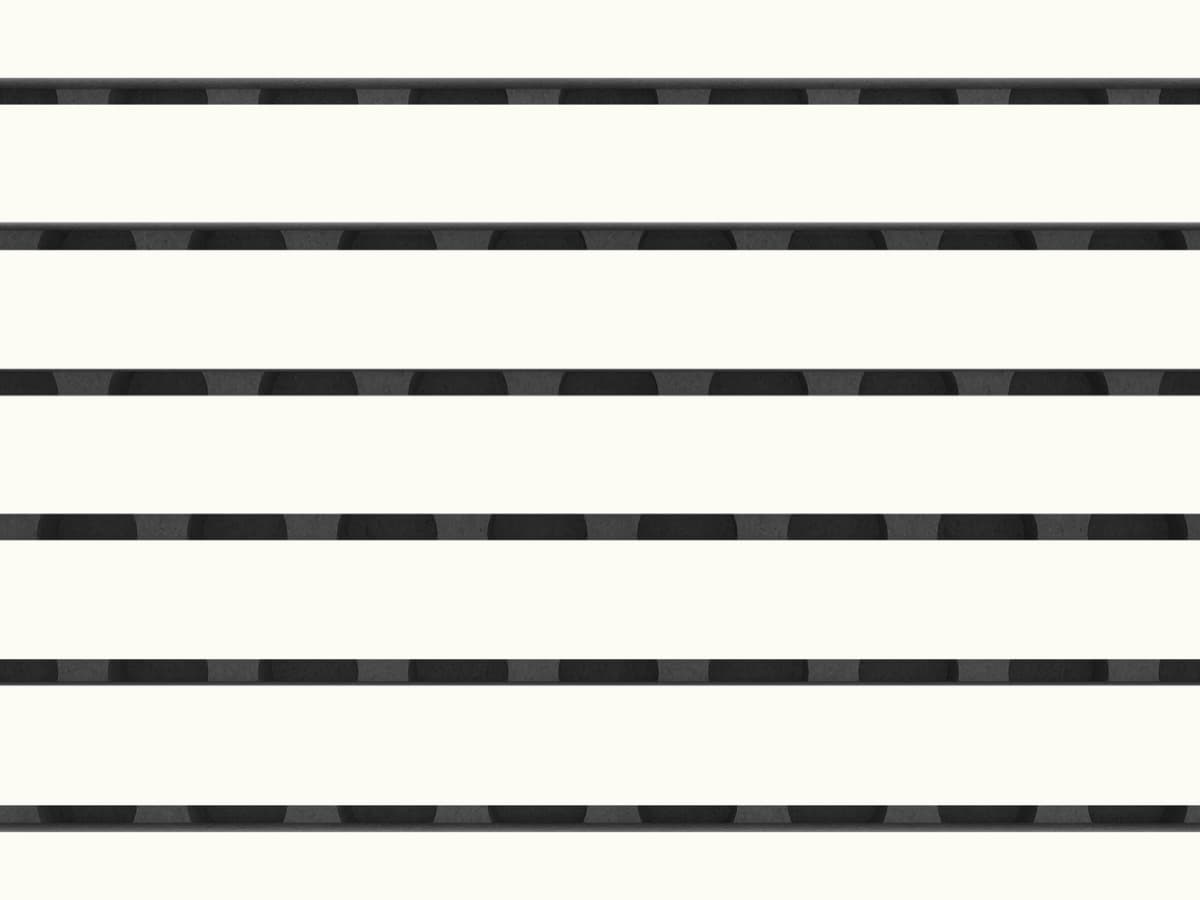

Premium white on black core 16/3 finish on slimline acoustic panel — Premium white on black core 16/3
Art. 548190

Variants and technical data

Grab your board and find a wave

slimline 16/3

Decorative acoustic panel for walls and ceilings, for mounting on substructure.

Dimensions: 2,784 x 192 mm
Core board: 16 mm MDF B2 E1, drilled
Surfaces: Veneer, CPL, melamine
Fire classification: C-s2, d0 according to DIN EN 13501-1 (in composite); limited contribution to fire; others on request
Edges: Tongue and groove (longitudinal), industrial saw cut (transverse)
Mounting: On wooden battens with proprietary clips

Download data sheet (PDF)

Measured absorption

Mounting condition	αw	Class	NRC
46 mm overall build-up, direct mount	0.85	B	0.8
76 mm overall build-up, direct mount	0.85	B	0.85

46 mm overall build-up, direct mount76 mm overall build-up, direct mount

slimline 32/4

Decorative acoustic panel for walls and ceilings, for mounting on substructure.

Dimensions: 2,784 x 192 mm
Core board: 16 mm MDF B2 E1, drilled
Surfaces: Veneer, CPL, melamine
Fire classification: C-s2, d0 according to DIN EN 13501-1 (in composite); limited contribution to fire; others on request
Edges: Tongue and groove (longitudinal), industrial saw cut (transverse)
Mounting: On wooden battens with proprietary clips

Download data sheet (PDF)

Measured absorption

Mounting condition	αw	Class	NRC
216 mm overall build-up, 150 mm cavity	0.7	C	0.76

216 mm overall build-up, 150 mm cavity

slimline Stripes[3]

Decorative acoustic panel with the Stripes[3] slotting pattern, for walls and ceilings on substructure.

Dimensions: 2,784 x 192 mm
Core board: 16 mm MDF B2 E1, drilled
Surfaces: Veneer, CPL, melamine
Fire classification: C-s2, d0 according to DIN EN 13501-1 (in composite); limited contribution to fire; others on request
Edges: Tongue and groove (longitudinal), industrial saw cut (transverse)
Mounting: On wooden battens with proprietary clips

Download data sheet (PDF)

Measured absorption

Mounting condition	αw	Class	NRC
46 mm overall build-up, direct mount	0.8	B	0.8
76 mm overall build-up, direct mount	0.8	B	0.85

46 mm overall build-up, direct mount76 mm overall build-up, direct mount

slimline invisible 16/3

Acoustic panel with 45 degree oblique slotting that conceals the perforation, for a closed surface appearance with full acoustic function.

Dimensions: 2,784 x 192 mm
Core board: 19 mm MDF B2 E1, drilled
Surfaces: Veneer, CPL, melamine
Fire classification: C-s2, d0 according to DIN EN 13501-1 (in composite); limited contribution to fire; others on request
Edges: Tongue and groove (longitudinal), industrial saw cut (transverse)
Mounting: On wooden battens with proprietary clips

Download data sheet (PDF)

Measured absorption

Mounting condition	αw	Class	NRC
49 mm overall build-up, direct mount	0.8	B	0.85
79 mm overall build-up, direct mount	0.8	B	0.95

49 mm overall build-up, direct mount79 mm overall build-up, direct mount

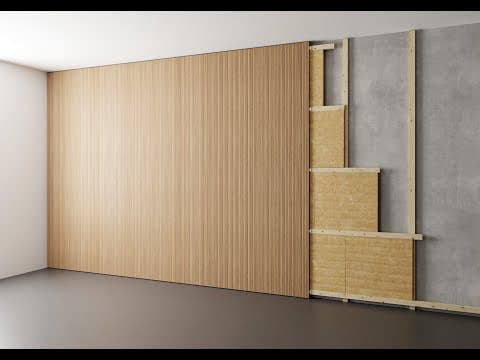

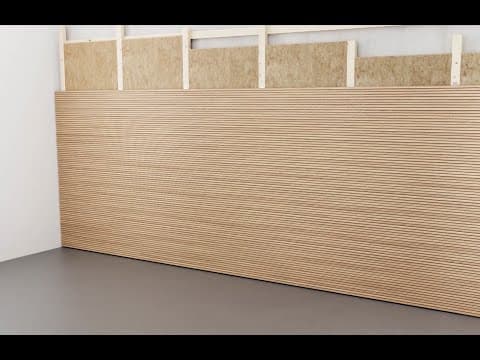

Installation

See it installed

Stripes[3]

With an anti-moiré effect

Lay two striped, alternating patterns together and you might see an elliptical pattern that is in neither of them. This optical interference is called the moiré effect. On a long run of evenly slotted panelling, the slots and the surface can interact to make a wall shimmer or look blurred from a distance.

Our Stripes[3] pattern is designed to break that regularity. The slots are set in a staggered, irregular cadence that reduces the moiré effect. The colour of the slots has also been engineered to reduce this effect and keeps the surface calm even as the viewing angle and distance change.

This pattern is therefore ideal for long, uninterrupted stretches of panels, such as on long ceilings or corridors.

Documents

Plan with real data

CAD .dwg files and technical drawings are available on request. Contact us

Ready to specify slimline?

Tell us your area in square metres and we will come back with a tailored quotation, usually within one working day.

Get a Quote

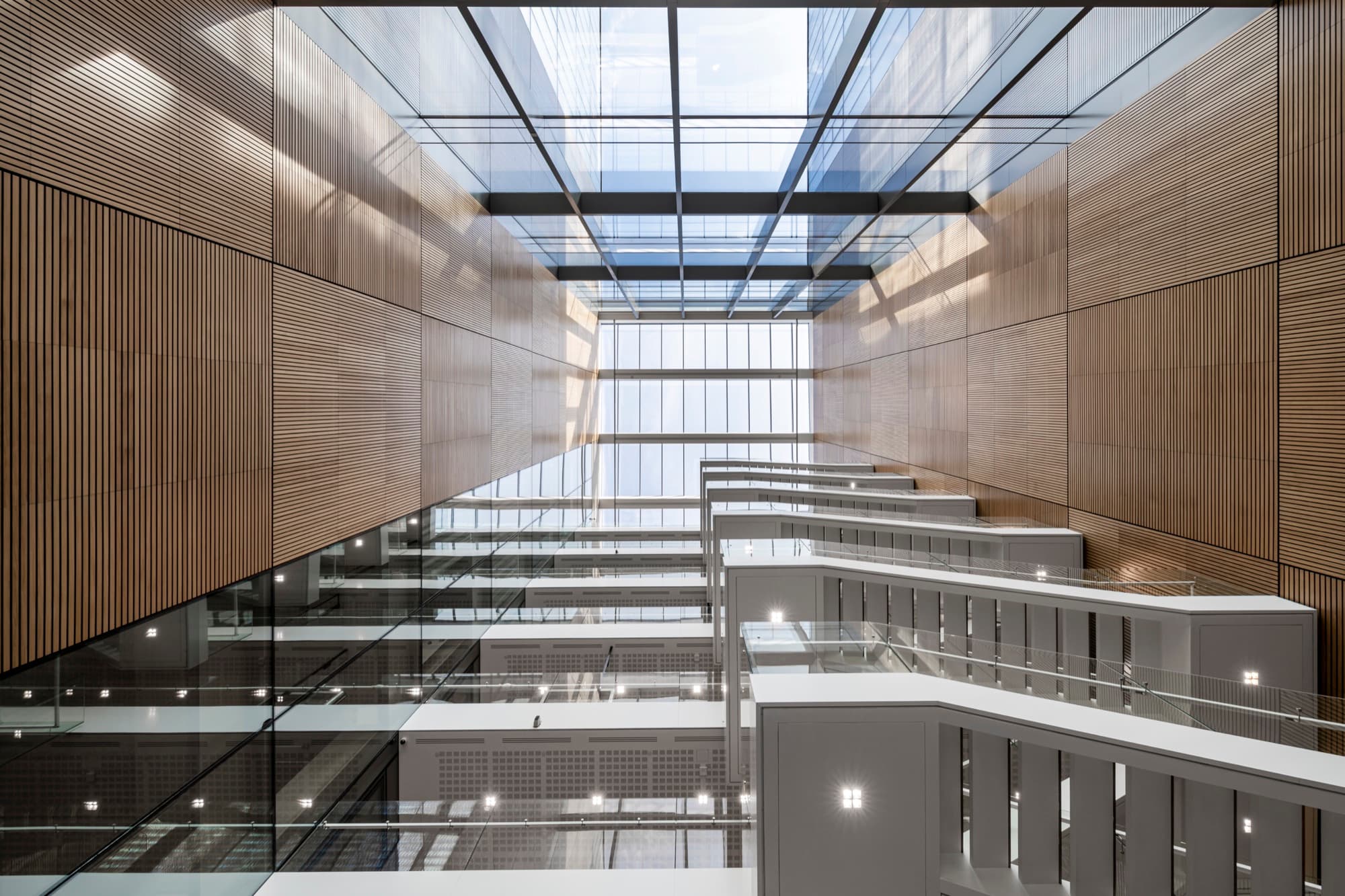

LVOVO Business Centre: acoustic panelling detail
